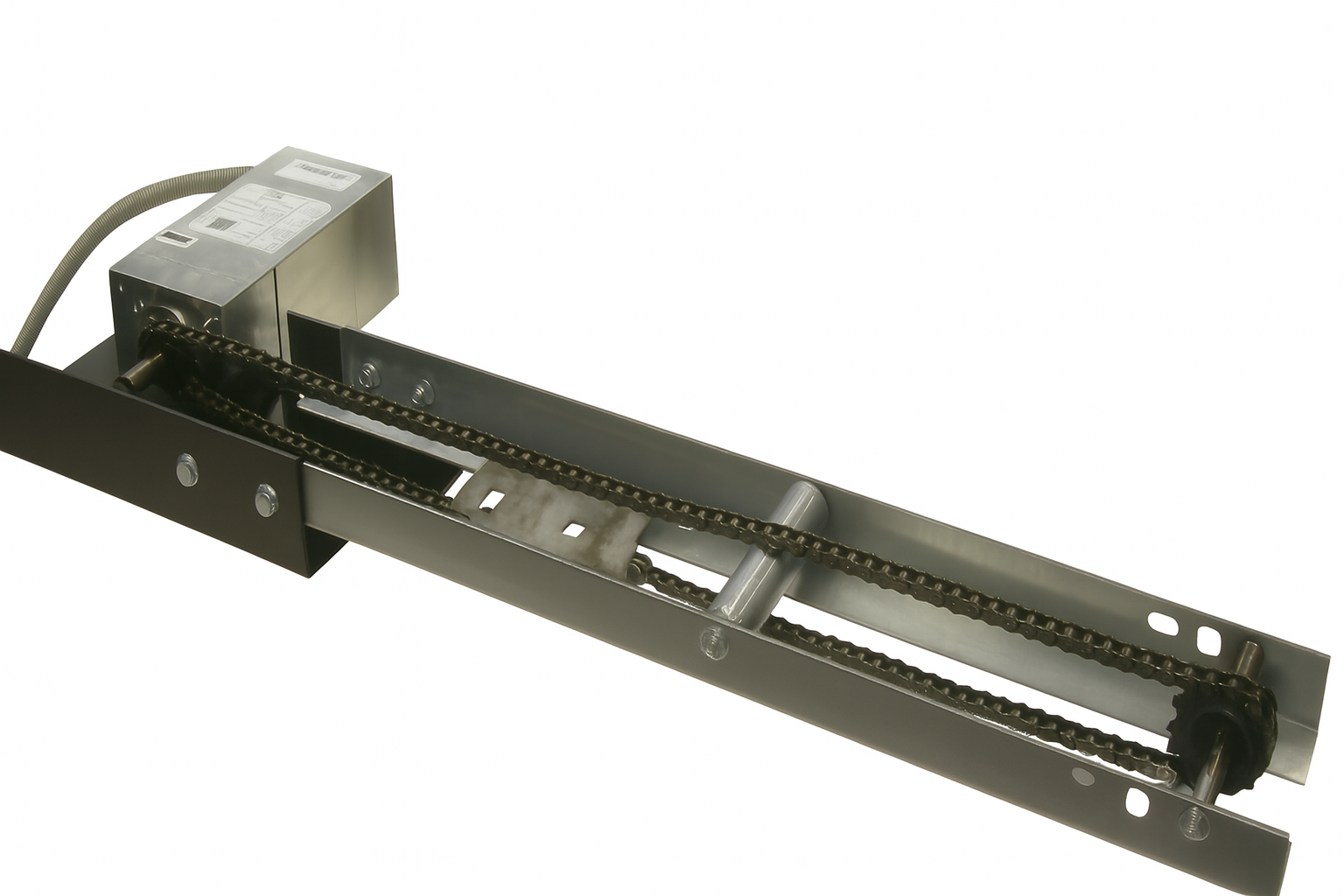

GDI’s JDMG is a high-cycle industrial operator built for shaft-driven systems and trolley-mount applications.
Designed for dependable performance in demanding commercial environments and configurable for your door setup.
Contact us for specifications, wiring details, and recommended configurations for your site.
| Feature | Jackshaft / Shaft Drive | Trolley Mount |
|---|---|---|
| Mounting Style | Shaft-driven (standard headroom) | Trolley (low headroom) |
| Drive Method | Sprocket-to-sprocket system | Trolley rail drive system |
| Enclosure | Standard NEMA 1 panel | Optional NEMA 4 watertight |
| Best Fit | High-cycle commercial / industrial doors | Low-clearance / retrofit situations |
| Attribute | Details |
|---|---|
| Mounting Options | Shaft drive or trolley mount (low headroom) |
| Drive System | Sprocket-to-sprocket (shaft-driven) configuration available |
| Motor Type | Permanent magnet DC with planetary gears |
| Voltage Range | 115–575 VAC, single- or three-phase, 50/60 Hz |
| Cycle Capacity | Up to 3,200 cycles/day |
| Door Weight Capacity | Up to 1,200 lbs |
| Operating Temperature | -40 °C to +50 °C |
| Battery Backup | 36 VDC with intelligent charging system and automatic switchover |
| Certifications | UL, ULC, UL 325 compliant (optional) |
| Add-On | Description |
|---|---|
| Field Upgrades | Trolley kit, battery backup, chain hoists |
| Factory Options | NEMA 4 panel, Opto-Block™, UL 325 photo-eye |
| Advanced Controls | LCD display & PositionTrak™ memory |
| Application | Description |
|---|---|
| Car washes & wet environments | Watertight design helps prevent moisture-related issues |
| Parking garages & parkades | Reliable high-cycle performance |
| Cold storage & pharmaceuticals | Designed for dependable low-temperature operation |
| Agricultural & livestock | Durable in dusty, corrosive conditions |
| Fabric & vinyl roll-up doors | Quiet, smooth operation |
Engineered for harsh, wet, and high-duty environments, the sealed control module helps protect critical electronics from moisture, dust, and spray while maintaining stable performance and fast diagnostics. A gasketed housing and sealed cable interface help keep water out during washdowns and weather events, while the integrated LCD streamlines setup, status checks, and fault review at the door. Service-friendly connectors support quick swap-outs and upgrades without disturbing the enclosure seal, helping minimize downtime and keep cycles moving.
| Feature | Description |
|---|---|
| Adaptive Controller & AlgorithmDrive™ | Consistent speed & optimized torque |
| NetworkPower™ | Remote monitoring & control for up to 128 operators |
| LCD Diagnostics | Clear status & fault reporting |
| Battery Backup | Helps maintain operation during power interruptions |
Download the 1-page JDMG Operator specifications for use in project planning or engineering submissions.
